Efficient procedure to remove ECG from sEMG with limited deteriorations: Extraction, quasi-periodic detection and cancellation

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Nougarou, F., Massicotte, D. et Descarreaux, M. (2018). Efficient procedure to remove ECG from sEMG with limited deteriorations: Extraction, quasi-periodic detection and cancellation. Biomedical Signal Processing and Control, 39 . pp. 1-10. ISSN 1746-8094 DOI 10.1016/j.bspc.2017.07.019

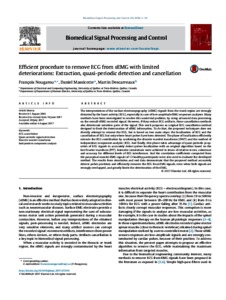

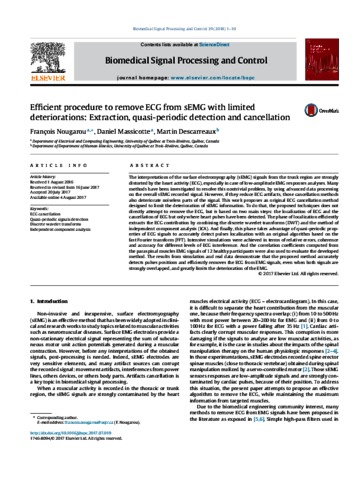

[thumbnail of Descarreaux, Martin_40_2010.pdf]
Prévisualisation
PDF
Télécharger (2MB) | Prévisualisation

Résumé

An efficient method is presented to remove ECG from EMG with limited deterioration. The ECG pulses are first localized and then remove only where they have been detected. A combination of ICA and DWT is first used to extract ECG information. Then, the pulses positions are detected with an original algorithm based on FFT which takes advantage of the quasi-periodic nature of the ECG. The proposed method accurately detects pulses positions and efficiently removes the ECG from EMG signals even when both signals are strongly overlapped. The interpretations of the surface electromyography (sEMG) signals from the trunk region are strongly distorted by the heart activity (ECG), especially in case of low-amplitude EMG responses analyses. Many methods have been investigated to resolve this nontrivial problem, by using advanced data processing on the overall sEMG recorded signal. However, if they reduce ECG artifacts, those cancellation methods also deteriorate noiseless parts of the signal. This work proposes an original ECG cancellation method designed to limit the deterioration of sEMG information. To do that, the proposed techniques does not directly attempt to remove the ECG, but is based on two main steps: the localization of ECG and the cancellation of ECG but only where heart pulses have been detected. The phase of localization efficiently extracts the ECG contribution by combining the discrete wavelet transforms (DWT) and the method of independent component analysis (ICA). And finally, this phase takes advantage of quasi-periodic properties of ECG signals to accurately detect pulses localization with an original algorithm based on the fast Fourier transform (FFT). Intensive simulations were achieved in terms of relative errors, coherence and accuracy for different levels of ECG interference. And the correlation coefficients computed from the paraspinal muscles EMG signals of 12 healthy participants were also used to evaluate the developed method. The results from simulation and real data demonstrate that the proposed method accurately detects pulses positions and efficiently removes the ECG from EMG signals, even when both signals are strongly overlapped, and greatly limits the deterioration of the EMG.

Type de document: Article
Mots-clés libres: ECG Cancellation Quasi-Periodic Signals Detection Discrete Wavelet Transforms Independent Component Analysis
Date de dépôt: 04 avr. 2019 19:46
Dernière modification: 07 juin 2023 19:18
Version du document déposé: Version officielle de l'éditeur
URI: https://depot-e.uqtr.ca/id/eprint/8637
